HiBy R5 II - Hi-Res Audio Player Medium-end Android DAP
Succeeding the first generation of good sound and outstanding performance/price ratio and MORE UPGRADES!
A-Class sound Class A headphone
Android Lossless Digital Music Player
A-class class-A amplification
Discrete output stage
Dual High-Performance DACs for astonishing music resolution
Dual independent crystal oscillators, FPGA clock algorithm
Hi-Res Audio Player Medium-end Android DAP
HiBy R5 II
Reviews
Please open cc subtitles as required
Audio Comp
A-Class sound Class A headphone
amplifier | Discrete output stage | Dual ES9219C DACs | Dual crystal oscillators | Luxurious audiophile grade componentry
A-class class-A amplification
Employing flagship grade class-A amplification in this mid-tier android DAP, the R5 utilizes Class A discrete balanced amplification circuitry, capable of continuous high power output, with plentiful energy reserves for all music genres. Converting power with ease for the most dynamic compositions, the sound is clear and full.
Discrete output stage
With 4 independent channels of push-pull amplification with 270° conduction angles constructed of discrete componentry, including 8 high powered paired bipolar transistors, the R5 provides excellent current output power and control over variable loads. Enable Class A headamp mode for class-beating audio performance! THD is down at 0.0006% at the amplified output for unparalleled realism.
Dual High-Performance DACs for astonishing music resolution
Dual ES9219C DACs natively support DSD256, PCM768kHz/32bit high-res formats, with SNR of 130dB and THD+N down below -112dB. Presenting a highly accurate output voltage, ensures the most accurate signal is given to the class-A amp section for amplification; also supporting integrated DAC-amp output (economy mode) for excellent low power consumption and extra long play time.
Dual independent crystal oscillators, FPGA clock algorithm
Utilizing dual independent audiophile-grade crystal oscillators at 45.158MHz and 49.152MHz provides high precision timing for all audio events in your music.
Cost-no-object audio componentry naturally lays the path to quality sound
Employing 163 high-precision resistors, 19 Panasonic tantalum POSCAPs, and 4 ELNA electrolytic capacitors maximally suppresses power supply ripple, yielding silky black backgrounds.
A-Class sound
Class A headphone amplifier | Discrete output stage | Dual ES9219C DACs | Dual crystal oscillators | Luxurious audiophile grade componentryLooong playtime and great sound
Huge screen for the win!
Huge colourful 4.7” 720p display on a compact package, for perfect display and control of your albums.
The ever-reliable HiBy OS
The HiBy OS is an in-house developed system architecture developed by HiBy targeting professional HiFi audio equipment. Optimized / novel components include system core, decoding system, audio DSP algorithms, media library management, external drivers / plugins etc. optimizing the player for lossless hi-res audio from the ground up. HiBy OS is synonymous with audio quality, flexibility and reliability.
Systemwide SRC bypass including Apple Music hi-res support
Fully open android compatible with virtually all 3rd party apps, bypassing sample rate conversion systemwide, allowing you to enjoy lossless music from any supporting app, including Apple Music!
HiByLink remote link for easy control of player from smartphone
Connect to every headphone imaginable!

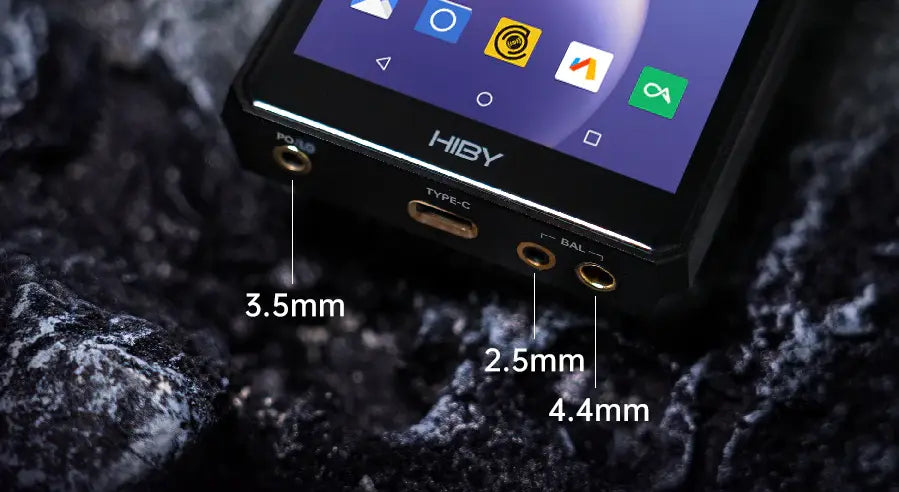

2.5mm / 3.5mm / 4.4mm headphone ports all here, all switchable to line out!
MQA to the max!
Supporting 16x MQA unfolding, enabling master quality sound directly from your device. MQA (Master Quality Authenticated) is an award-winning audio technology that enables music fans to stream the original master recording into their home in the highest possible quality. The MQA file is fully authenticated, backward compatible, and small enough to stream, so you can play MQA on any compatible device. Wherever there is audio, MQA delivers the best sound.
Unwired unlimited
Two-way Bluetooth supporting all Bluetooth audio codecs including UAT, LDAC, aptX, aptX HD, AAC, SBC. 2.4GHz and 5GHz dual band WiFi for stable connection to your online music library at all times. Supports DLNA / WiFi music transfer. UAT (Ultra Audio Transmission) is HiBy’s in-house developed all-new Bluetooth audio transmission codec. Supporting an industry-highest 192kHz transmission sample rate and up to 1.2Mbps Bluetooth bandwidth, this also can optimize its transmission characteristics according to different music genres, for the highest of audio fidelity from wireless!
QC3.0 quick charge
Specs
Specifications
| Model | HiBy R5 (Gen 2) |
|---|---|
| Operating system | Android 8.1 |
| SoC model | Snapdragon 425 |
| DAC | ES9219C x2 |
| WiFi | Supports 2.4GHz, 5GHz |
| Bluetooth | Bluetooth 4.2 |
| USB | USB 2.0 |
| Display size | 4.7” |
| Display type | IPS |
| Display resolution | 720*1280 |
| RAM | 2GB |
| Internal storage | 16GB |
| Micro SD card | ＜2TB |
| Colour | Black |
| Body material | Aluminium |
| Dimensions | 123*71.3*15.5 mm |
| Weight | 220 g |
| Input | 5V⎓0.5A or 9V⎓1.5A |
| Battery capacity | 4500mAh |
| Charging time | Approx. 2h (0%-100%) |
| Firmware upgrade | Over-the-air internet connected upgrade |
| Third-party app installations | Unlimited |
| PO (economy mode) | BAL (economy mode) | PO (Class A headamp mode) | BAL (Class A headamp mode) | |
|---|---|---|---|---|
| THD+N @32Ω | 0.0022% | 0.0007% | 0.0006% | 0.0009% |
| MAX OUTPUT | 1.9Vrms | 3.2Vrms | 2.2Vrms | 3.9Vrms |
| Output Power @32Ω | 110mW | 320mW | 150mW | 475mW |
| Signal To Noise @32Ω | 118dB | 122dB | 118dB | 120dB |
| Frequency Response | 20-80K | 20-80K | 20-80K | 20-70K |
| Residual Noise | 2uV | 2.5uV | 2.5uV | 3.6uV |
| Channel Separation 1KHz/32Ω | 62dB | 82dB | 62dB | 99dB |
| Play time | 35h | 28h | 10h | 7h |
What’s in the box
Leather protective case included
Made with high-quality PU leather, the HiBy-designed case protects your R5 from scratches and drops.
Leather protective case, R5 Gen 2, user guide, package box, USB type-C cable, screen protector, warranty card, QC certificate.
Please open cc subtitles as required
A-Class sound Class A headphone
amplifier | Discrete output stage | Dual ES9219C DACs | Dual crystal oscillators | Luxurious audiophile grade componentry
A-class class-A amplification
Employing flagship grade class-A amplification in this mid-tier android DAP, the R5 utilizes Class A discrete balanced amplification circuitry, capable of continuous high power output, with plentiful energy reserves for all music genres. Converting power with ease for the most dynamic compositions, the sound is clear and full.
Discrete output stage
With 4 independent channels of push-pull amplification with 270° conduction angles constructed of discrete componentry, including 8 high powered paired bipolar transistors, the R5 provides excellent current output power and control over variable loads. Enable Class A headamp mode for class-beating audio performance! THD is down at 0.0006% at the amplified output for unparalleled realism.
Dual High-Performance DACs for astonishing music resolution
Dual ES9219C DACs natively support DSD256, PCM768kHz/32bit high-res formats, with SNR of 130dB and THD+N down below -112dB. Presenting a highly accurate output voltage, ensures the most accurate signal is given to the class-A amp section for amplification; also supporting integrated DAC-amp output (economy mode) for excellent low power consumption and extra long play time.
Dual independent crystal oscillators, FPGA clock algorithm
Utilizing dual independent audiophile-grade crystal oscillators at 45.158MHz and 49.152MHz provides high precision timing for all audio events in your music.
Cost-no-object audio componentry naturally lays the path to quality sound
Employing 163 high-precision resistors, 19 Panasonic tantalum POSCAPs, and 4 ELNA electrolytic capacitors maximally suppresses power supply ripple, yielding silky black backgrounds.
A-Class sound
Class A headphone amplifier | Discrete output stage | Dual ES9219C DACs | Dual crystal oscillators | Luxurious audiophile grade componentryLooong playtime and great sound
Huge screen for the win!
Huge colourful 4.7” 720p display on a compact package, for perfect display and control of your albums.
The ever-reliable HiBy OS
The HiBy OS is an in-house developed system architecture developed by HiBy targeting professional HiFi audio equipment. Optimized / novel components include system core, decoding system, audio DSP algorithms, media library management, external drivers / plugins etc. optimizing the player for lossless hi-res audio from the ground up. HiBy OS is synonymous with audio quality, flexibility and reliability.
Systemwide SRC bypass including Apple Music hi-res support
Fully open android compatible with virtually all 3rd party apps, bypassing sample rate conversion systemwide, allowing you to enjoy lossless music from any supporting app, including Apple Music!HiByLink remote link for easy control of player from smartphone
Connect to every headphone imaginable!
2.5mm / 3.5mm / 4.4mm headphone ports all here, all switchable to line out!
MQA to the max!
Supporting 16x MQA unfolding, enabling master quality sound directly from your device. MQA (Master Quality Authenticated) is an award-winning audio technology that enables music fans to stream the original master recording into their home in the highest possible quality. The MQA file is fully authenticated, backward compatible, and small enough to stream, so you can play MQA on any compatible device. Wherever there is audio, MQA delivers the best sound.
Unwired unlimited
Two-way Bluetooth supporting all Bluetooth audio codecs including UAT, LDAC, aptX, aptX HD, AAC, SBC. 2.4GHz and 5GHz dual band WiFi for stable connection to your online music library at all times. Supports DLNA / WiFi music transfer. UAT (Ultra Audio Transmission) is HiBy’s in-house developed all-new Bluetooth audio transmission codec. Supporting an industry-highest 192kHz transmission sample rate and up to 1.2Mbps Bluetooth bandwidth, this also can optimize its transmission characteristics according to different music genres, for the highest of audio fidelity from wireless!
QC3.0 quick charge
Specifications
| Model | HiBy R5 (Gen 2) |
|---|---|
| Operating system | Android 8.1 |
| SoC model | Snapdragon 425 |
| DAC | ES9219C x2 |
| WiFi | Supports 2.4GHz, 5GHz |
| Bluetooth | Bluetooth 4.2 |
| USB | USB 2.0 |
| Display size | 4.7” |
| Display type | IPS |
| Display resolution | 720*1280 |
| RAM | 2GB |
| Internal storage | 16GB |
| Micro SD card | ＜2TB |
| Colour | Black |
| Body material | Aluminium |
| Dimensions | 123*71.3*15.5 mm |
| Weight | 220 g |
| Input | 5V⎓0.5A or 9V⎓1.5A |
| Battery capacity | 4500mAh |
| Charging time | Approx. 2h (0%-100%) |
| Firmware upgrade | Over-the-air internet connected upgrade |
| Third-party app installations | Unlimited |
| PO (economy mode) | BAL (economy mode) | PO (Class A headamp mode) | BAL (Class A headamp mode) | |
|---|---|---|---|---|
| THD+N @32Ω | 0.0022% | 0.0007% | 0.0006% | 0.0009% |
| MAX OUTPUT | 1.9Vrms | 3.2Vrms | 2.2Vrms | 3.9Vrms |
| Output Power @32Ω | 110mW | 320mW | 150mW | 475mW |
| Signal To Noise @32Ω | 118dB | 122dB | 118dB | 120dB |
| Frequency Response | 20-80K | 20-80K | 20-80K | 20-70K |
| Residual Noise | 2uV | 2.5uV | 2.5uV | 3.6uV |
| Channel Separation 1KHz/32Ω | 62dB | 82dB | 62dB | 99dB |
| Play time | 35h | 28h | 10h | 7h |
What’s in the box
Leather protective case included
Made with high-quality PU leather, the HiBy-designed case protects your R5 from scratches and drops.
Leather protective case, R5 Gen 2, user guide, package box, USB type-C cable, screen protector, warranty card, QC certificate.
Hi-Res Audio Player Medium-end Android DAP
About the HiBy R5 II
Snapdragon 425
ES9219C x2
123*71.3*15.5 mm
220g
Android 8.1
35
Hours
PO (economy mode)
7
Hours
Up to 6 hours use of class AB amplification
Blog posts

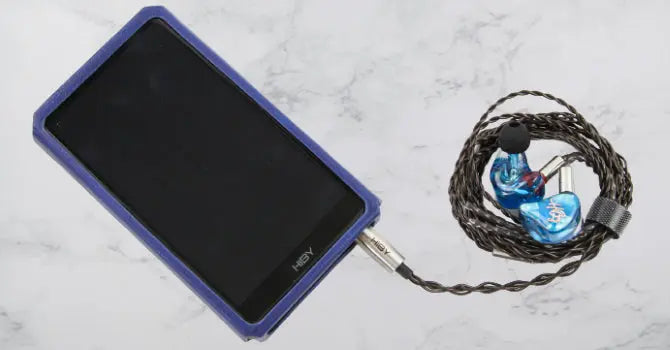

HiBy R5 (Gen 2) Digital Audio Player Review
Since I started covering audio on TechPowerUp last year, I've mentioned digital audio players (DAPs) in many a headphones and IEMs review. Music players were the norm not that long ago, b...
Hiby R5 Gen 2: Entry level benchmark——From Headfi
Hiby R5 Gen 2: Entry level benchmark Pros: Class A mode sounds deliciousOutstanding battery on eco mode (30h)Google StoreAmazing price to performanceConnectivitiesPower on class A Cons...

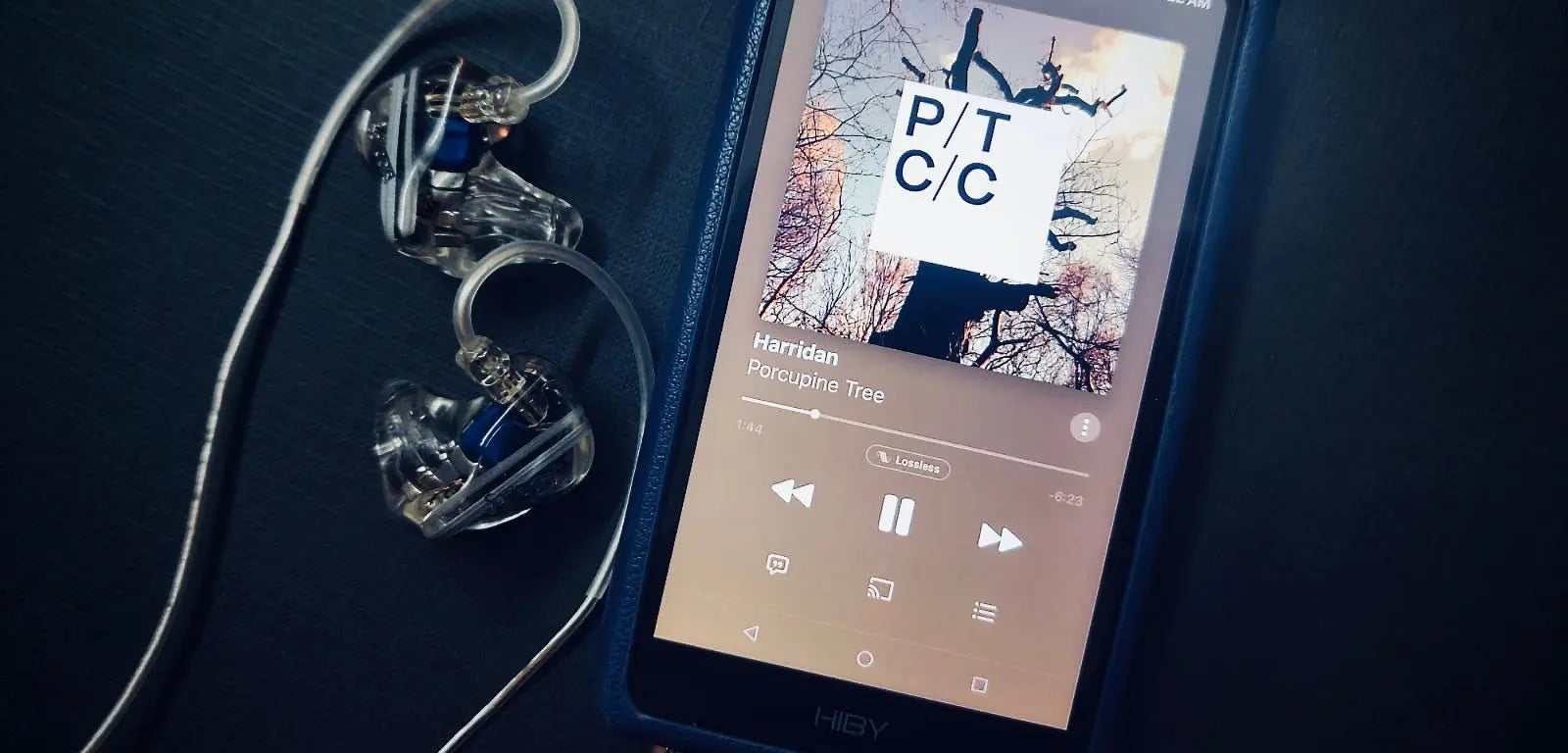

DAP Review HiBy R5 Gen 2——From twister6
