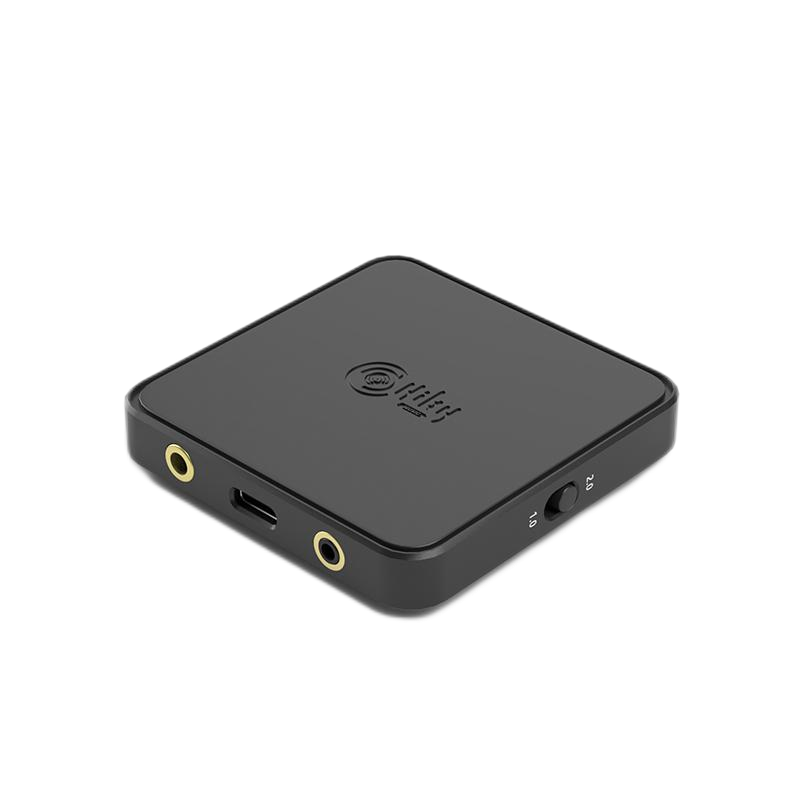

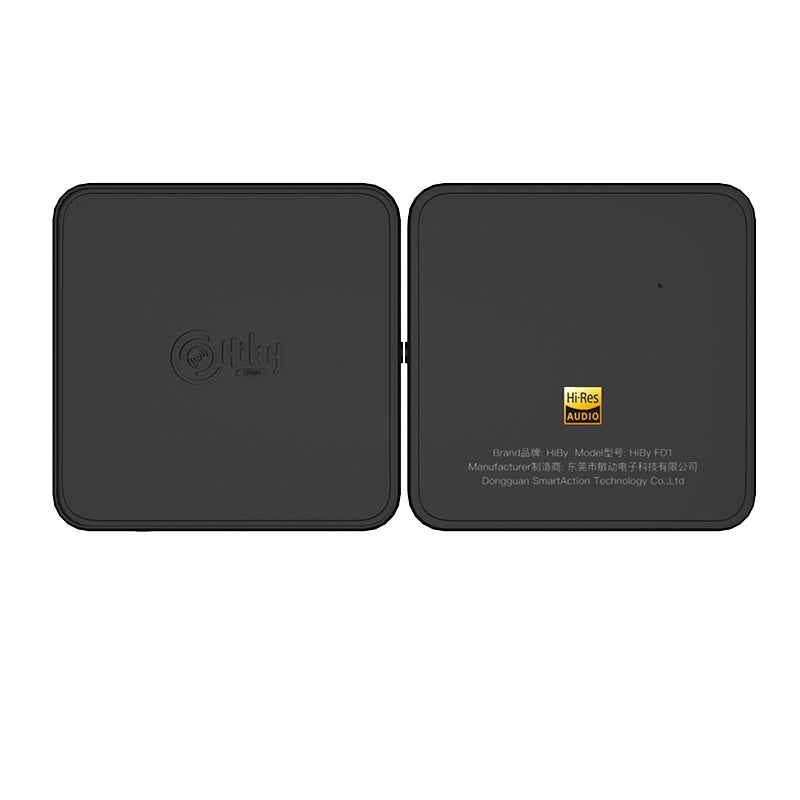

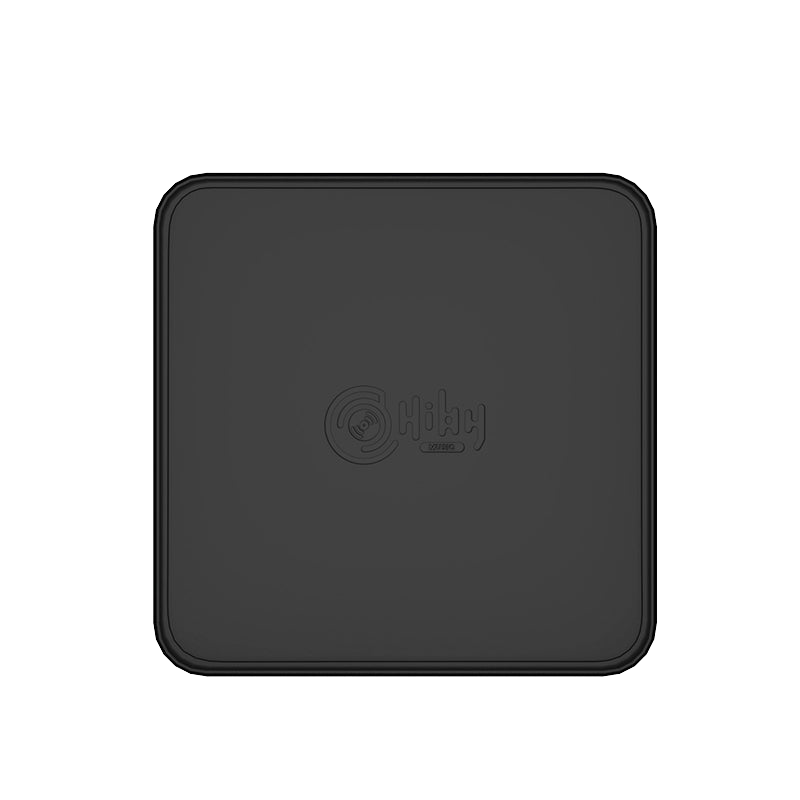

HiBy FD1
Transform Your Audio with HiBy FD1 USB Headphone Amp
HiBy FD1
Audio Comp
Magic Music Box
USB headphone amplifier, for use with computers, smartphones etc.
Featured In
"It is safe to say that FD1 has great value, an ergonomic shape, and good sonic quality for the price. It sounds much better over balanced and if you have a 2.5mm cable, or if you have some adapters from 4.4mm to 2.5mm, you'll have more fun with it, and it will be able to drive harder to get to IEMs and even headphones. The battery consumption is not very high either and it has a warmer, fuller sound that works well for most music styles."
Learn More
Magic Music Box
Supports Android, iOS, Windows, MacOS, etc.
Supports smartphones, computers, tablets, digital audio players, etc.
The official match
Best compatibility with HiByMusic Exclusive HQ USB Audio Access mode.
HiFi solution for smartphones
The HiByMusic app is an Android / iOS cross-platform HiFi music player, with over 2 million users worldwide. Its Exclusive HQ USB Audio Access mode in combination with external USB DACs is the preferred way of listening to music for 10s of thousands of mobile audiophiles.
Dual ES9118 audio chip
A powerful chip doubled—for double the decoding and driving power
Dual crystal oscillators
Two active crystal oscillators with low phase noise, separately responsible for system clocks for 44.1x and 48x clocked audio signals, lowering jitter, improving the accuracy of digital audio.
SE and balanced supported
3.5mm SE + 2.5mm balanced output.
A variety of output choices for a variety of headphones.
Hi-Fi experience plus the convenience
All music format support
Native DSD128 decoding
Can act is computer USB sound card
No charging required; driverless plug-and-play
Hardware USB mode switch
Switching between USB Audio 1.0 and 2.0 standards
On android devices it is recommended to use USB Audio 2.0 and use with HiByMusic app;
iOS supports device directly, USB Audio 2.0 recommended (Camera Connection Kit cable required)
USB 1.0 for driverless plug and play on Windows 7/8/10, DSD not supported;
USB 2.0 for driverless plug and play on Windows 10 (build 1703 and later), extra driver installation required for DSD support.

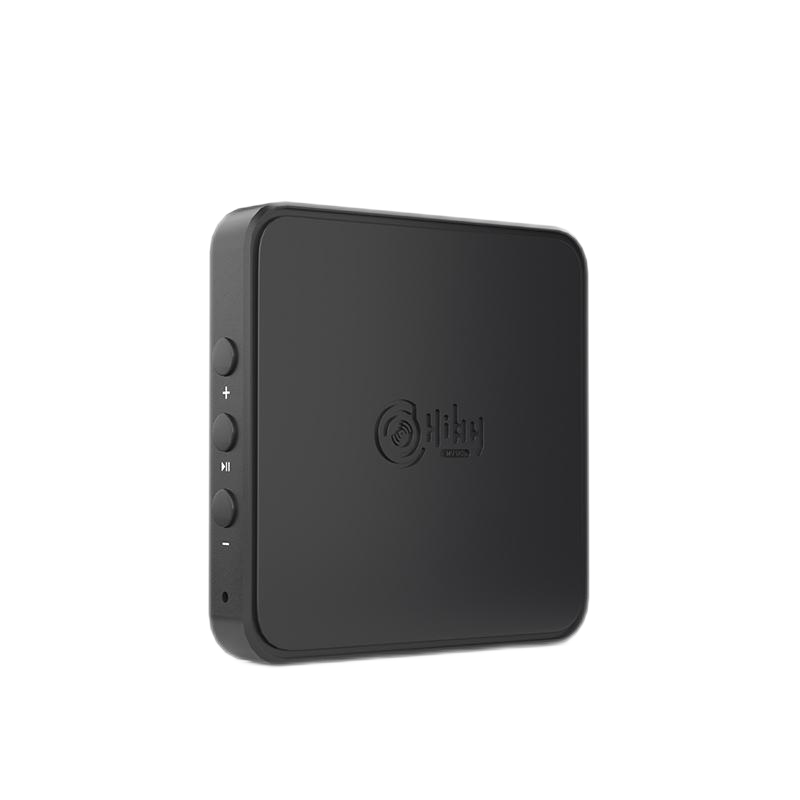

Physical buttons
The indicator light light comes up in different colours according to the currently playing music format / sample rate.
Blue: Playing at PCM 32kHz-48kHz
Green: Playing at PCM 88.2kHz-192kHz
White: Playing at DSD
Off: connected, not playing
Specs
Specifications
| Model |
HiBy FD1 |
|---|---|
| Dimensions | 61.5*61.5*9.5 mm |
| Weight | 27 g |
| Chipset summary | SA2000+dual ES9118 |
| Buttons | Play/pause, volume+, volume- |
| DSD decoding | Native (SA2000) |
| Audio format support | Native PCM and DSD decoding |
| DAC & amp | Dual ES9118 |
| Status display | Tri-colour LED |
| USB port | Type-C |
| Headphone output | 3.5mm Single Ended headphone port(supports wired remote) |
| Balanced output | 2.5mm Balanced headphone port |
List of included items
Product packaging, FD1, instructions, USB cable, Type-C cable, magic sticker, warranty card
Magic Music Box
USB headphone amplifier, for use with computers, smartphones etc.
Featured In
"It is safe to say that FD1 has great value, an ergonomic shape, and good sonic quality for the price. It sounds much better over balanced and if you have a 2.5mm cable, or if you have some adapters from 4.4mm to 2.5mm, you'll have more fun with it, and it will be able to drive harder to get to IEMs and even headphones. The battery consumption is not very high either and it has a warmer, fuller sound that works well for most music styles."
Learn MoreMagic Music Box
Supports Android, iOS, Windows, MacOS, etc.
Supports smartphones, computers, tablets, digital audio players, etc.
The official match
Best compatibility with HiByMusic Exclusive HQ USB Audio Access mode.
HiFi solution for smartphones
The HiByMusic app is an Android / iOS cross-platform HiFi music player, with over 2 million users worldwide. Its Exclusive HQ USB Audio Access mode in combination with external USB DACs is the preferred way of listening to music for 10s of thousands of mobile audiophiles.
Dual ES9118 audio chip
A powerful chip doubled—for double the decoding and driving power
Dual crystal oscillators
Two active crystal oscillators with low phase noise, separately responsible for system clocks for 44.1x and 48x clocked audio signals, lowering jitter, improving the accuracy of digital audio.
SE and balanced supported
3.5mm SE + 2.5mm balanced output.
A variety of output choices for a variety of headphones.
Hi-Fi experience plus the convenience
All music format support
Native DSD128 decoding
Can act is computer USB sound card
No charging required; driverless plug-and-play

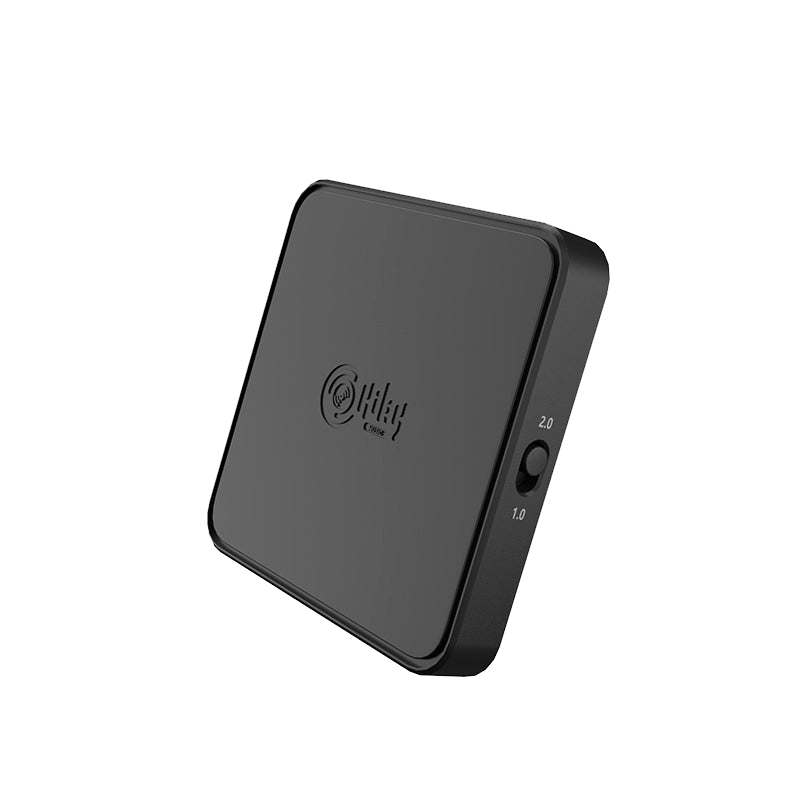

Hardware USB mode switch
Switching between USB Audio 1.0 and 2.0 standards
On android devices it is recommended to use USB Audio 2.0 and use with HiByMusic app;
iOS supports device directly, USB Audio 2.0 recommended (Camera Connection Kit cable required)
USB 1.0 for driverless plug and play on Windows 7/8/10, DSD not supported;
USB 2.0 for driverless plug and play on Windows 10 (build 1703 and later), extra driver installation required for DSD support.
Physical buttons
The indicator light light comes up in different colours according to the currently playing music format / sample rate.
Blue: Playing at PCM 32kHz-48kHz
Green: Playing at PCM 88.2kHz-192kHz
White: Playing at DSD
Off: connected, not playing
Specifications
| Model |
HiBy FD1 |
|---|---|
| Dimensions | 61.5*61.5*9.5 mm |
| Weight | 27 g |
| Chipset summary | SA2000+dual ES9118 |
| Buttons | Play/pause, volume+, volume- |
| DSD decoding | Native (SA2000) |
| Audio format support | Native PCM and DSD decoding |
| DAC & amp | Dual ES9118 |
| Status display | Tri-colour LED |
| USB port | Type-C |
| Headphone output | 3.5mm Single Ended headphone port(supports wired remote) |
| Balanced output | 2.5mm Balanced headphone port |
List of included items
Product packaging, FD1, instructions, USB cable, Type-C cable, magic sticker, warranty card
Blog posts

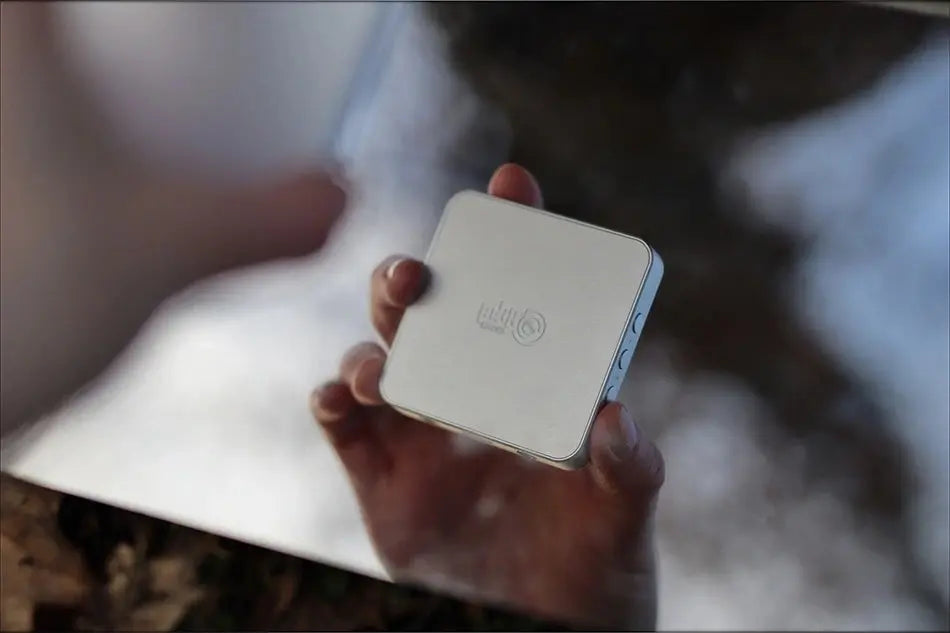

HiBy FD1 Review——audiophile-heaven
We sometimes have a really basic DAC/AMP that proves to be really effective, and that’s the case with the 60 USD Hiby FD1 as well, a DAC/AMP, with Single Ended, and Balanced Headphone Ou...

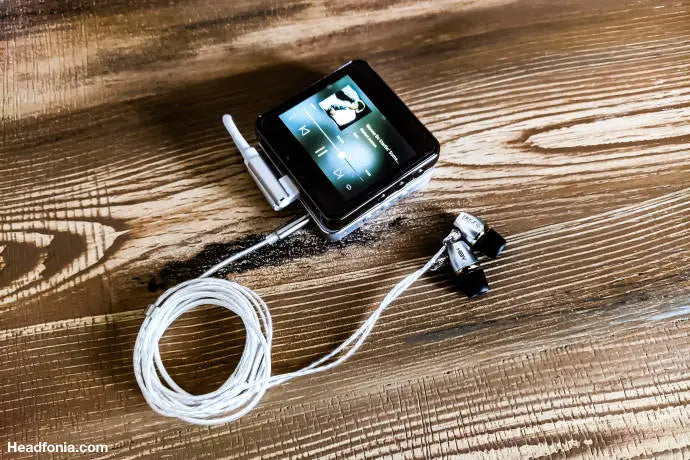

HIBY R2 & FD1 & BEANS REVIEW——headfonia
Today we’re looking at the Hiby R1 & FD1 & Beans. It’s HiBy’s new small form-factor media player, the $99 USD R2, its companion, the $59 USD FD1 amp and the $69 USD Beans IEM. ...

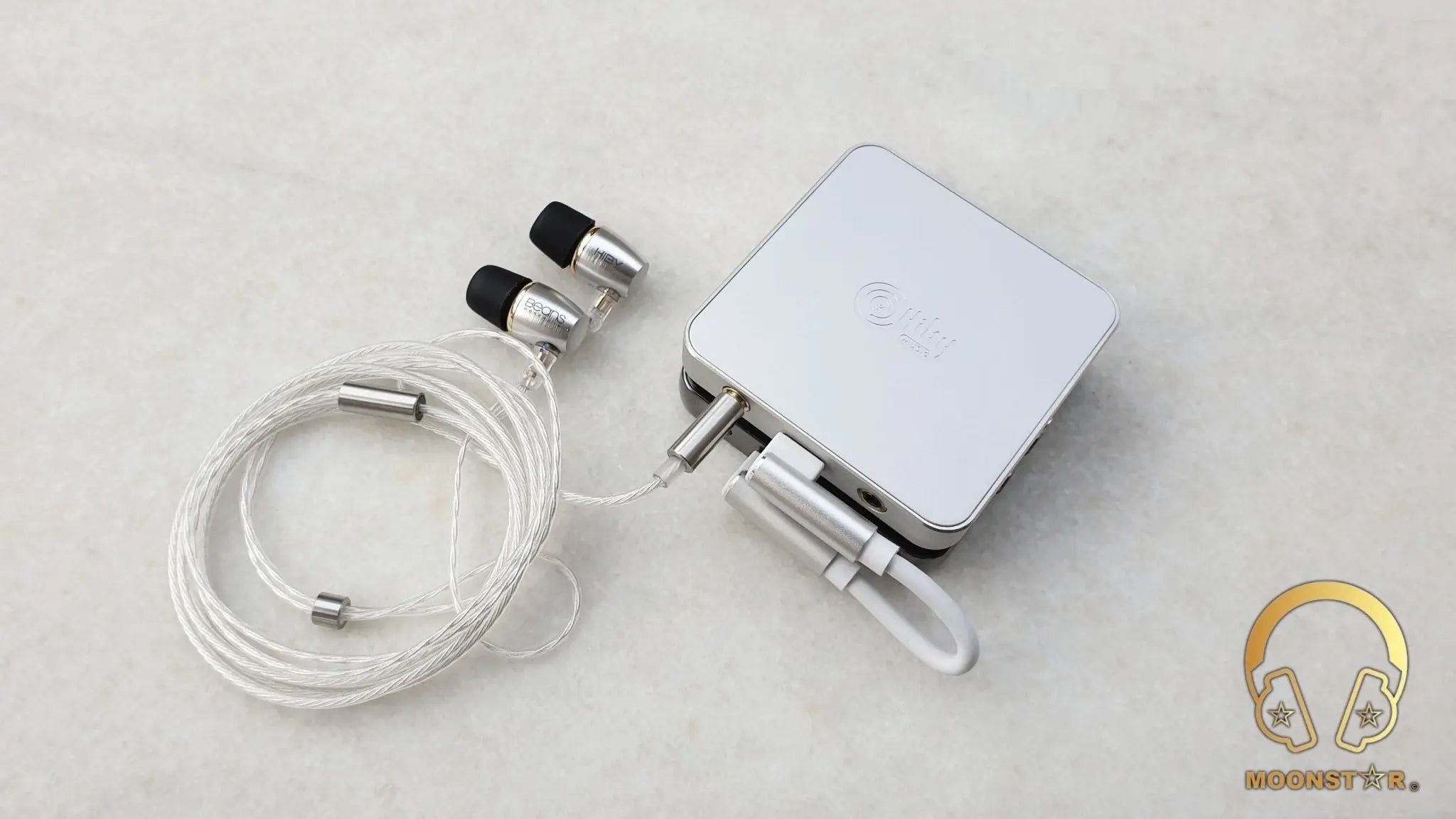

HiBy FD1 DAC/Amplifier Review——moonstarreviews
